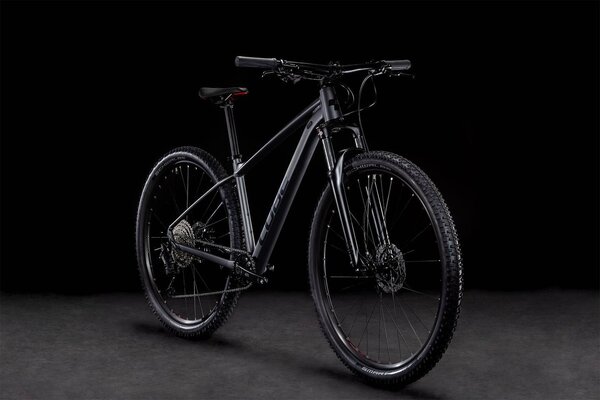

CUBE Bikes Aim EX

CUBE Bikes Aim EX
  • Color: desert'n'black
  • Color: grey'n'red
$1,299.00
Color:
grey'n'red
Please select options

Details

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

When the off-road bug bites, you'll want a bike that won't let you down. That's why, for the brand-new Aim EX, we began with Shimano's superbly reliable, wide-ranging Deore 1x10 gears. Paired with the bump-swallowing ability of Suntour's 100mm XCM fork - with remote lockout - and tenaciously grippy 2.25in tires, it's your guarantee of always having the right gear for any eventuality at your fingertips. Strong Shimano hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake. Where will it take you next?

Wheel size:
- Sizes X-Small – Small: 27.5-inch
- Sizes Medium – XX-Large: 29-inch

bike frame with labeled dimensions
Bike Sizes:
14" / 27.5 / X-Small16" / 27.5 / Small18" / 29 / Medium20" / 29 / Large22" / 29 / X-Large
A. Reach 384.4mm 398mm 409.2mm 426.2mm 440.7mm
B. Stack 595mm 597.6mm 627.3mm 637.4mm 656mm
C. Standover 707mm 720mm 759mm 792mm 824mm
D. Effective Top Tube 555mm 575mm 595mm 615mm 635mm
E. Head Tube Angle 68.5° 68.5° 68.5° 68.5° 68.5°
F. Head Tube Length 108.2mm 111mm 111mm 121.8mm 141.8mm
G. Seat Tube Angle 74° 73.5° 73.5° 73.5° 73.5°
H. Seat Tube Length 340mm 370mm 420mm 470mm 515mm
J. Bottom Bracket Drop 51.5mm 51.5mm 65mm 65mm 65mm
M. Wheelbase 1067.5mm 1082.1mm 1125.4mm 1146.4mm 1168.2mm
O. Chainstay Length 427mm 427mm 450mm 450mm 450mm
Wildcard 1 170mm 175mm 175mm 175mm 175mm

Specs

Frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork SR Suntour XCM Disc, 100mm, Remote Lockout
Rims CUBE ZX20, 32H, Disc
Tires Schwalbe Smart Sam, Active, 2.25
Crankset ACID MTB Alloy 32T
Shifters Shimano Deore SL-M4100, Rapidfire-Plus
Rear Derailleur Shimano Deore RD-M5120-SGS, 10-Speed
Cassette/Freewheel Sunrace CSM52, 11-46T
Chain KMC X10
Brakes Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Handlebars CUBE Rise Trail Bar, 680mm
Tape/Grips ACID React
Stem CUBE Performance Stem Pro, 31.8mm
Headset CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Seatpost CUBE Performance Post, 27.2mm
Saddle Natural Fit Venec Lite
Pedals CUBE PP MTB

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
grey'n'red / Small / 27.5-inch 04054571355546 50145016 AIM14965607S
grey'n'red / Large / 29-inch 04054571355560 50145020 AIM14838242L
grey'n'red / X-Large / 29-inch 04054571355577 50145022 AIM15236068L
