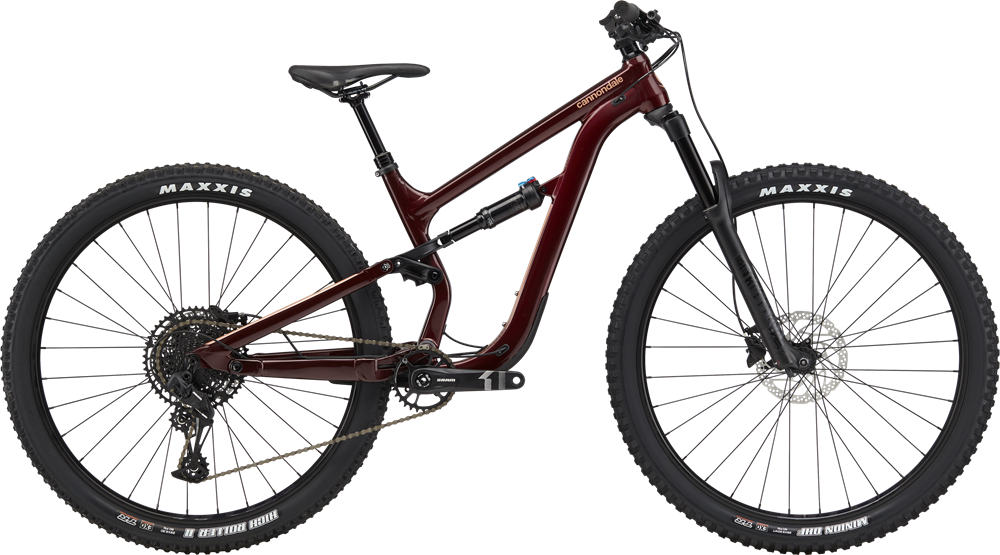

A trail bike with its priorities straight: progressive design, playful agility and killer capability–all in the name of fun.
The head angle is slack, the stays are short and the seat angle is steep. It’s that long, low modern geometry that helps you wring a little more flow out of every kind of trail.
The right stuff
Big, grippy tires. 29" wheels (27.5 on the XS for the best fit). Properly wide bars and properly short stems. Powerful brakes and dropper posts. Straightforward parts for straightforward performance.
Easy to love
Designed to be a "daily ride", the Habit is built for easy service with proven, durable suspension pivots, easy internal cable routing and no oddball proprietary stuff.
Proportional Response suspension
Riders come in all sizes. Most suspension doesn't. Proportional Response is the only suspension design that tailors the actual suspension layout by size so that every rider gets optimal traction, suppleness and control.
- SmartForm C1 Alloy frame
- RockShox 35 RL Gold 140mm fork / Fox Float Performance DPS EVOL rear shock
- SRAM SX Eagle 12-speed drivetrain / dropper post
Where it thrives
- Challenging trails, up and down hills
What it's built for
- Traction, handling, durability

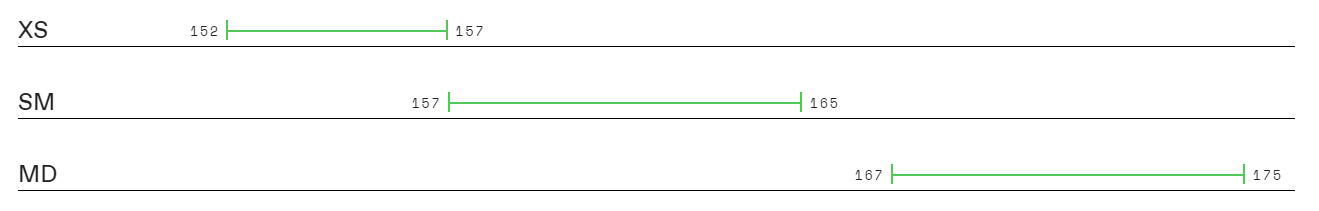

- Size X-Small: 27.5-inch
- Sizes Small – Medium: 29-inch
|Frame||130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, Post mount brake, tapered headtube|
|Fork||RockShox 35 Gold RL, 140mm, DebonAir, 15x110, tapered steerer, 51/44mm offset|
|Headset||Integrated, 1-1/8 to 1.5", sealed angular contact bearings|
|Rear Shock||Fox Float Performance DPS EVOL, 3-Pos adj.|
|Rims/Wheels||WTB STX i23 TCS, 32h, tubeless ready|
Front: Shimano MT400 15x110
Rear: Shimano MT400 12x148
|Spokes||Stainless Steel, 14g (Ai Offset Dish - rear)|
Front: Maxxis Minion DHF 2.5, Dual compound, EXO puncture protection, tubeless ready
Rear: Maxxis High Roller II 2.3, Dual compound, EXO puncture protection, tubeless ready
|Crankset||SRAM X1-1000 Eagle DUB|
|Chainrings||30T, Ai offset|
|Bottom Bracket||SRAM DUB BSA MTB 83|
|Chain||SRAM SX Eagle, 12-speed|
|Rear Derailleur||SRAM SX Eagle|
|Cassette/Rear Cogs||SRAM PG-1210, SX Eagle, 11-50, 12-speed|
|Shifters||SRAM SX Eagle, 12-speed|
|Handlebars||Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm|
|Tape/Grips||Fabric FunGuy Locking Grips|
|Stem||Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°|
|Brake Levers||Shimano MT200 hydro disc|
|Brakes||Shimano MT200 hydro disc, 180/180mm RT30 rotors|
|Saddle||Cannondale Stage 3 Women's Ergo|
|Seat Post||TranzX Dropper, internal routing, 31.6, 100mm (XS), 125mm (S-M)|
* Subject to change without notice.
|Maroon / X-Small / 27.5-inch||884603780534||C23200F10XS||27533621912L|
|Maroon / Small / 29-inch||884603780541||C23200F10SM|
|Maroon / Medium / 29-inch||884603780558||C23200F10MD|
